Tuesday, January 17, 2012

Modify Rear Baggage Bulkhead and Baggage Floor Inspection Plate

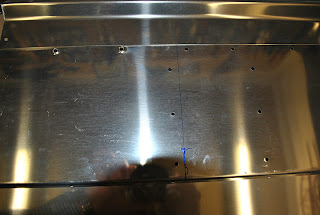

This evening I started a modification to the rear baggage bulkhead and inspection plate.  Currently, access to the tailcone area and the area under the rear floor inspection plate is not possible if the fuel tank is in place.  By making this modification to the bulkhead and inspection plate, the fuel tank can remain in place during an inspection.  The bulkhead and inspection plate are modified so that only a portion of each part will remain in place under and behind the fuel tank, and limited access is possible.  I started by making the location of the right center rib on the bottom of the inspection plate.  I will need to not encroach on that space with the back-up plate that will be used to connect the pieces of inspection plate together.

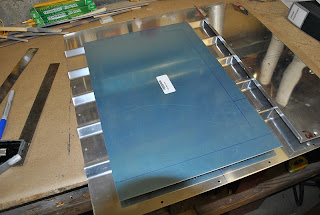

I then marked the cut line and the location of the drill holes for the rivets and 8-32 screws that will hold the parts together.  A couple of months ago I ordered a piece of .063" aluminum sheet from Van's for this project.  I laid out the backup plates on the sheet of aluminum.  I used the band saw to cut them out.  A strip of aluminum will be riveted to the section of inspection plate that will be under the fuel tank and the other piece of inspection plate will be attached to the strip with screws backed up by nutplates attached to the bottom of the strip.


I clamped the strip of aluminum in place under the inspection panel and proceeded to drill #30 holes.  I then drilled the screw holes with a #19 drill bit and also drilled and countersunk the holes for the flush rivets to hold the nutplates in place.  There are 5-each rivets attaching the aluminum strip to the fuel tank section of the inspection plate and 3-each 8-32 screws attaching the other section of inspection plate to the strip.  After the holes were drilled I used the band saw to cut the inspection plate in half.  I riveted the aluminum strip to the fuel tank half and connected the other portion to it with 3-screws.  It fits perfectly in place.

I then began working on the modification of the rear bulkhead.  I cut out the piece of aluminum backup plate that looks like a small framing square.  Following a similar process used on the inspection plate, I marked the cut lines and located the holes on the rear bulkhead.  I clamped the aluminum square to the back of the rear bulkhead and drilled all of the holes with a #30 bit.  Because the top and bottom holes on the long leg of the square is so close to the edge I will need to purchase 2-each corner nutplates to install in these locations.  I will call Van's to see if they have any in stock.  If not I will need to order them elsewhere.  I redrilled the screw holes with a #19 bit.  My next step will be to install the nutplates on the back of the aluminum square and cut the bulkhead panel apart.
